-Roller Clutch

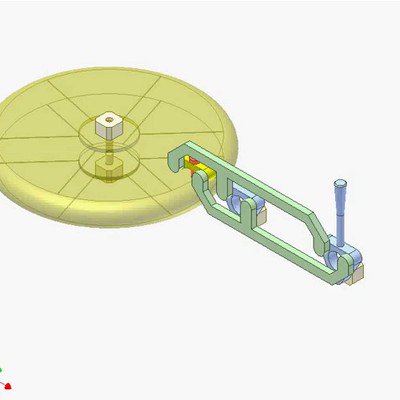

The blue roller is driving The orange one is driven.
The two small rollers are idle.
Using the pink arm to stop or reverse the orange roller’s rotation.
The mechanism’s weakness is needed measures to create pressure at the contact places of the blue, green and yellow rollers (not shown).
