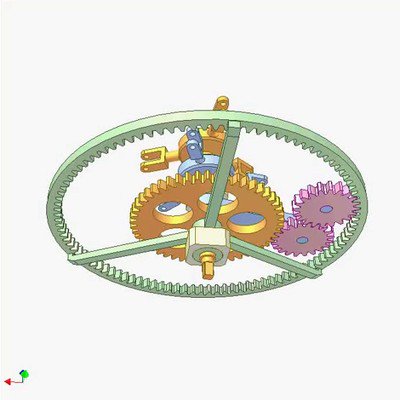

Application of Parallelogram Mechanism

Transmission of rotation movement between parallel shafts.
The red disk rotates without fixed bearing.
The driven shaft bearing is movable.
