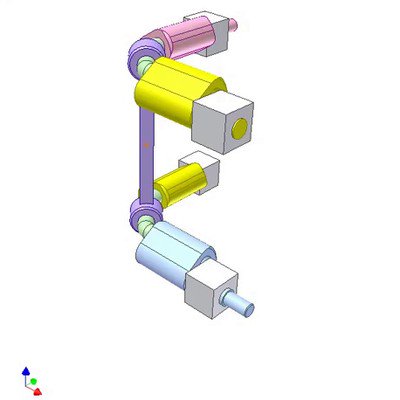

Application of Parallelogram Mechanism
Transmission of rotation movement between parallel shafts
The green shaft rotates without fixed bearing.
