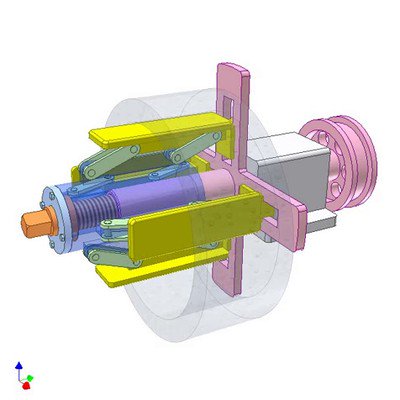

Azimuth Thruster With Hobsons Joints

Two Hobson’s joints replace two bevel gear drives of ordinary azimuth thruster.
Thrust direction is controlled by orange lever.
