Belt and Gear Drive

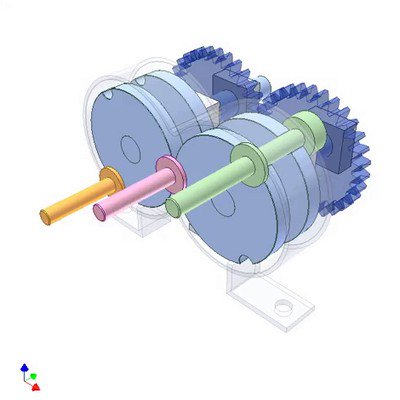

Input is the pink pulley shaft rotating regularly.
Output is the orange gear shaft rotating irregularly.
The violet and yellow cranks, the block of green pulley and blue gear with a certain eccentricity create a 4-bar linkage.
