Cable Drive

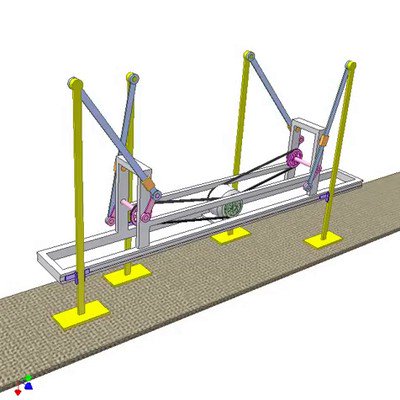

Input: The brown crank having oscillating rotational motion.
The green crank has the same motion but of inverse direction.
Two yellow wheel has oscillating rotational motion of opposite direction.
Each belt (red and blue) has one end fixed to the brown crank, the other to green one.
