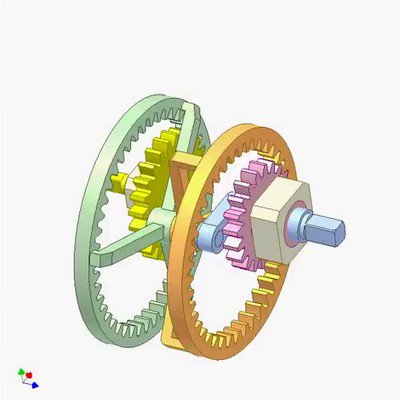

Differential Screw Mechanism

Input: yellow gear shaft.
Output: blue slider.
Orange gear creates a helical joint with green screw.
The video shows 3 motions of the blue slider: backward, fast backward and slow forward corresponding 3 positions of the grey lever carrying 3 pink pinions for controlling the orange gear rotation.
Braking device for the orange gear is not shown.
