Drawing Trapezium With Reuleaux Triangle

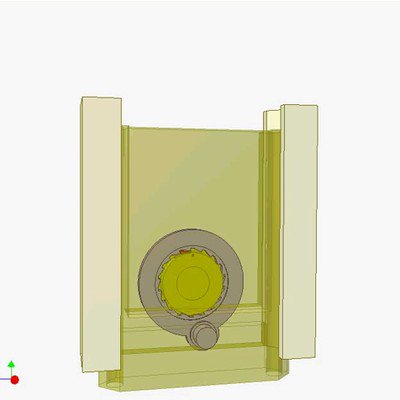

The cam profile is a Reuleaux triangle with rounded vertices.
The mechanism is used for moving film in cameras.
