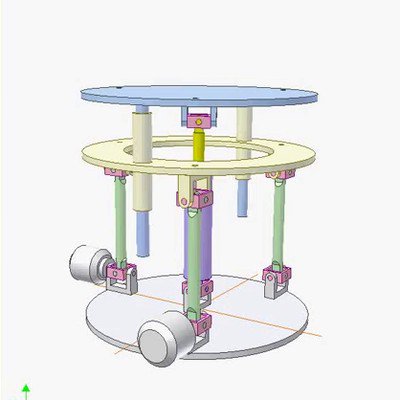

An application of crank slider mechanism.
The pistons are connected to a green slider and the cylinders to opposite one. The cylinders can be connected to the rotary table in order to reduce pistons’ displacement.
This chuck is used in tire mounting equipments.
