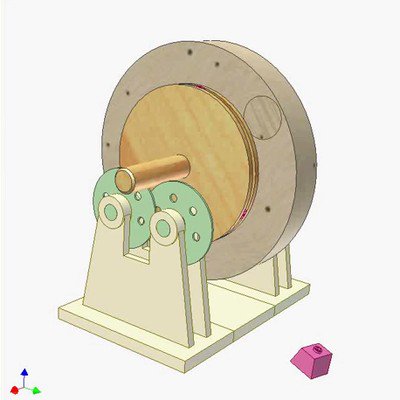

Friction Roller Variator

Input: the motor shaft carrying a roller.
Output: the pink wheel of rubber rim.
Select angular position of the motor for desired output velocity.
Weakness: high wear at contact places
