Gear Plantigrade Machine

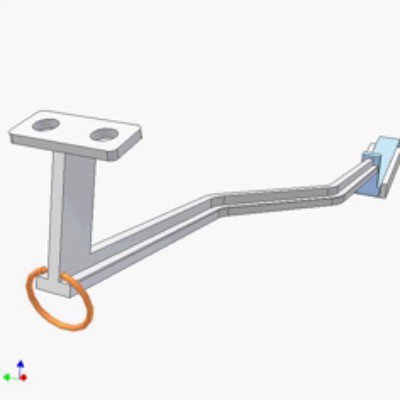

Input: grey motor making three pink crank-shafts rotate regularly at the same velocity thanks to 3 timing belt drives. Angles between cranks of the coaxial crank-shafts are 120 deg.The machine motion is not very even because time on the ground of each leg is less than 1/3 of working period.
