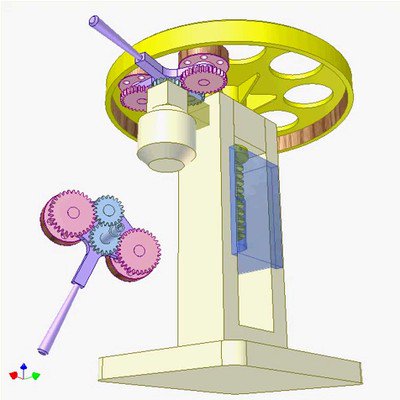

Gear-Rack-Crank Drive

Input: pink crank.
Output: blue gear shaft.
Center distance of rotary axes of the crank and the gear shaft C is equal to radius of rolling cycle of the gear.
In one input revolution the output rotates 360 deg. in the input rotary direction with dwell.
