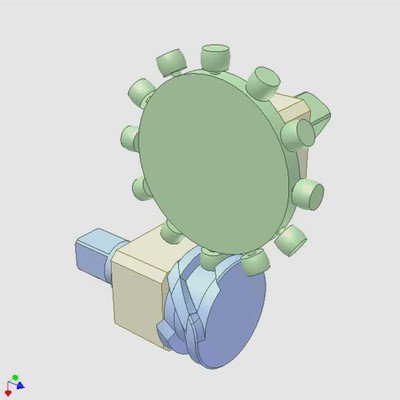

Geneva Mechanism
The ratio of motion period to dwell period is 1/5.
Angle of each rotation of the driven shaft is 120 degrees.
