Machine Tool Fixture

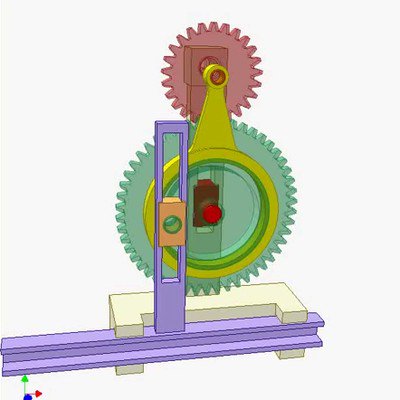

Turn blue lever to clamp or unclamp yellow workpiece.
At clamping position blue bar is nearly perpendicular to sliding line of pink slider so the mechanism gets into self-locking state. Force applied to the workpiece can not loosen it.
