Machine Tool Fixture

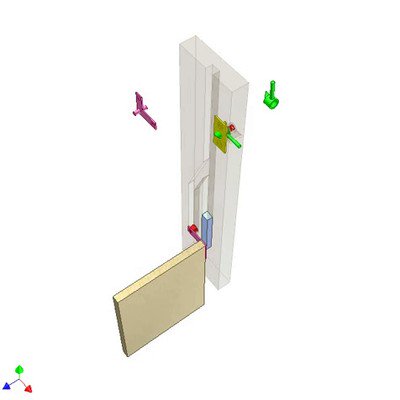

Turn orange screw to clamp or release the yellow workpiece.
Green sliders have prismatic joints with blue slider.
It is applied for clamping a long plate of unhomogeneous thickness
More of pink clamping heads are possible.
Number of pink clamp heads = number of green sliders + 1
It can be used for multi-workpiece clamping fixture.
