Machine Tool Fixture

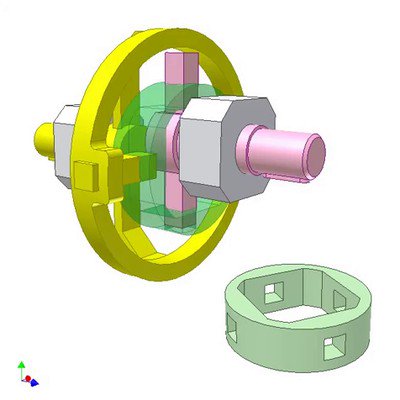

A cylinder (not shown) control green rack of oblique teeth to clamp or release yellow workpiece.
For easy removing the workpiece the blue jaw is set aside at unclamp position thanks to helical gear-rack drive and the interaction between the pink pin and L-shaped groove of the jaw.
