Manual Bending U-Shaped Products

It is for bending easy to dent, soft material.

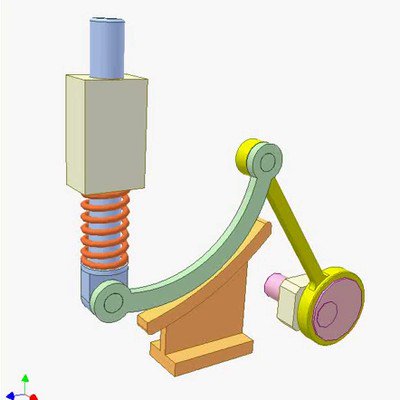

Input: pink shaft to which runways for white sliders are fixed.
Red roller is pivoted on the sliders. The roller moves in slots of green guides.
The roller bends transparent blank to get U-shaped product (in yellow).
The video shows at first the bending schema, then the mechanism action to create the roller motion.
