Mechanism for Adjusting Angular Position of a Lever

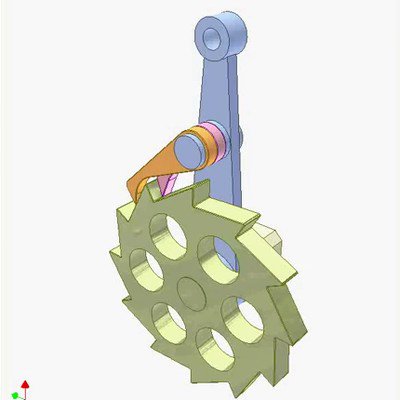

Grey fixed flexible fork enables axial gap for adjusting position of green lever. Pink cam is for clamping the lever after adjustment.
The mechanism can work in case without teeth (friction clamping).
