Mechanism for Advancing Perforated Strip

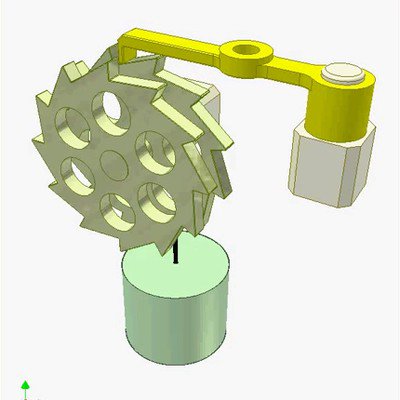

After being punched yellow strip is pulled to the left one pitch to prepare for the next punching.
Pink lever is forced towards violet stopper by a spring (not shown). When the lever goes down, brown cam pushes the pink lever to the left thus moves the strip.
Orange pawl prevents the strip from going back.
