Blue oar moves with different oblique angles A.
A= 45 deg. when going forward.
A = 0 deg. when going backward.

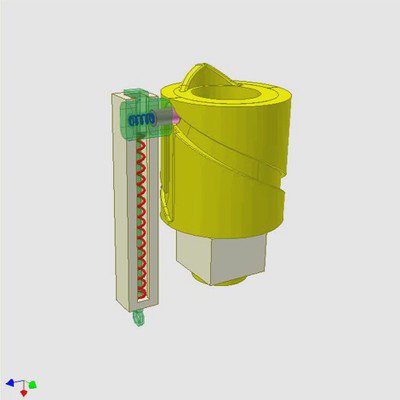

A is changed at the ends of the oar stroke thanks to the interaction of blue ball and yellow face cam. Yellow springs tend to press the ball on upper surface of the cam.
Grey motor makes the oar turn around vertical axis via 4-bar mechanism.
