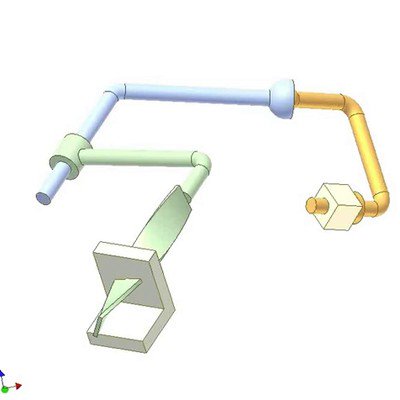

The mechanism has two degrees of freedom.
Pink slider performs planar motion.
Features:
- Actuators are base-mounted
- Pink slider and green bar have the same direction.
- Positon calculation of center of the revolute joint for the pink plate is less complicated in comparision with “Planar manipulator 1”.
This is a design from Goddard Space Flight Center, USA.
