Sarrus Linkage

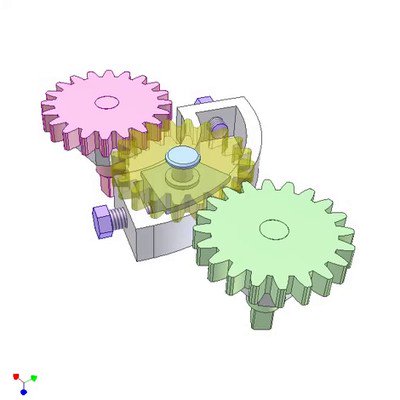

A way to connect two (or more) Sarrus linkages by adding gear drive (in yellow). Thus very long up-down rectilinear motion of the top floor can be obtained by just small displacement of a piston (in orange).
