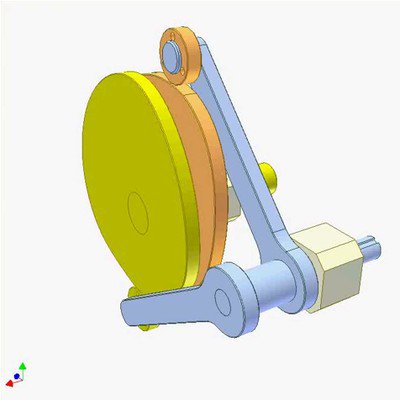

Schmidt Coupling

Transmission of rotation movement between parallel shafts.
The pink link rotates without fixed bearing.
Both shafts can move during transmission.
