Spherical Connection Control

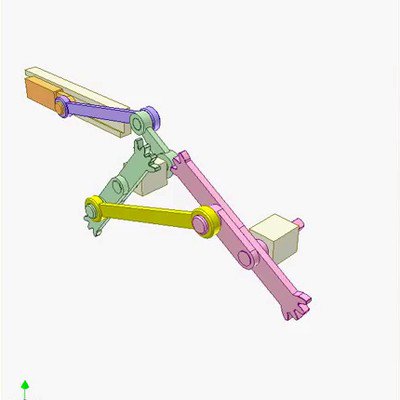

This is “Spherical joint of large turning angle 2a” equiped with drives.
Joint center is the intersecting point of three rotary axes (blue, green and pink parts).
The video shows the motion caused by grey, blue and pink motors alternately.
Disadvantage: only one motor is base grounded.
The mechanism is applied for manipulators.
