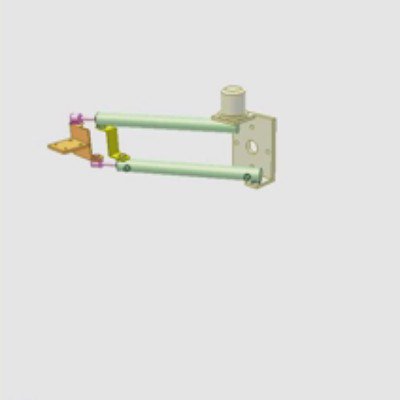

Motions for position adjustment of orange circular blade are shown:
- Up and down by using pink screw. The motor and blade shaft turns around red pin.
- Leaning by using pink nut
The hinge (in red and cyan) for leaning must be arranged as closely as possible to the blade and to the table upper surface.
The mechanism is applied for light duty saw machines.on request of Mr. Spiros Kantas from Corfu, Greece.
