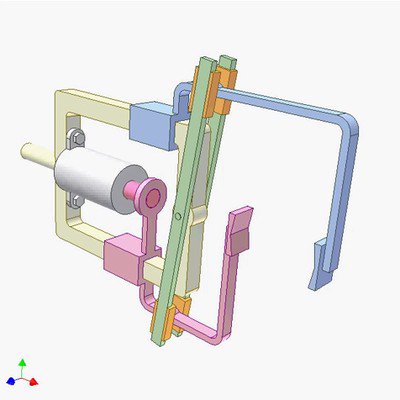

Length of the crank: a = 30 mm
Length of the two connecting rods: 2.6a = 78 mm
Length of the translating bar: 2a = 60 mm
The mechanism can work if the crank oscillates +/- 30 degrees around the horizontal direction and gap between the runway and the translating bar more than 0.044 mm.
The mechanism is deduced from the one of
