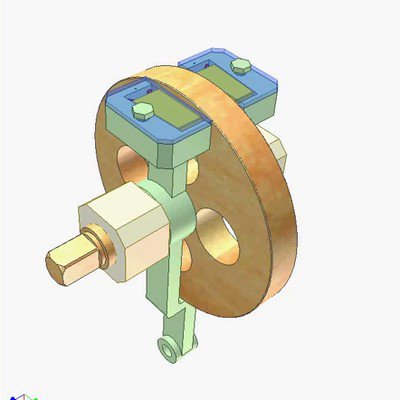

Transmission of Linear Displacement 16 September 2017, 22:00 Sorry, your browser doesn't support embedded videos, but don't worry, you can download it and watch it with your favorite video player! Input: green rack of 45 deg. oblique teeth reciprocating. It makes blue gear and barrel cam angularly reciprocate. Output: pink slider. Its violet pin moves in the cam groove. The groove shape controls the output motion. « previous mechanism Friction Ratchet Mechanism next mechanism » Nut-Screw and Bar Mechanisms load comments Please enable JavaScript to view the comments.
