Transmission With Teeth-Uncompleted Gears

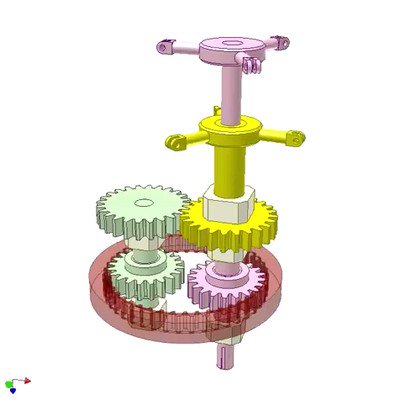

Input: the green gear.
Its original number of teeth Z1 = 24
Output: the blue gear
Its original number of teeth Z2 = 19
In one rev. of the input, the output turns 1 rev. and then pauses.
The arcs on both gears keep the output gear immobile during its pause period.
The pink and orange bars gives the output an added rotation before the teeth engagement.
