Disk Cam Mechanism

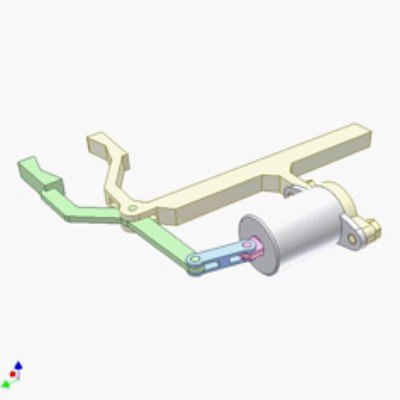

Cam vise. The pink cam has a rectangular slot at its center so it has linear motion during rotation. This helps move the green clamping head longer and faster.
