Linkage of Sliders, Conrods

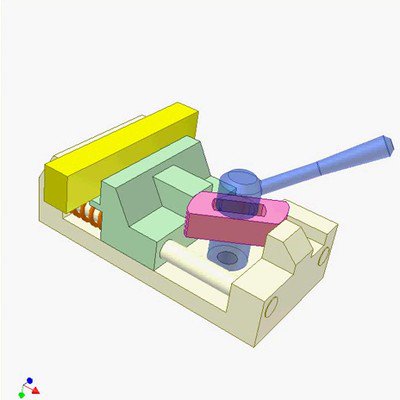

The mechanism particularity: there is no crank rotating on fixed bearing. A conrod (in violet) plays role of the crank.
It can be used as a self-balanced clamp for two workpieces if the gap between red pin and its slot is large enough.
