Safety Clutch (Friction)

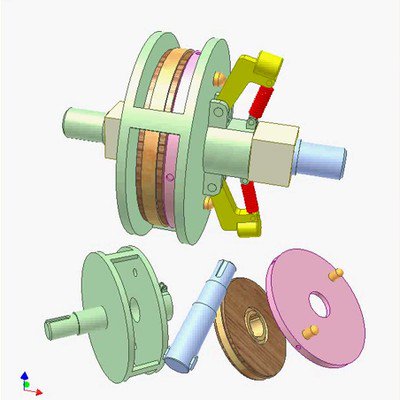

Under normal condition the violet rod is kept immobile due to friction generated by spring force. The pink bar rocks around a pin of the violet rod. When the slider crashes with the red part, the violet rod moves to the right to prevent damage of other parts.
Repositioning of the violet rod is needed for mechanism restore.
