Wedge Mechanism

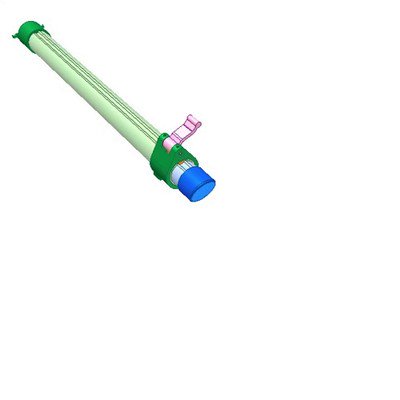

Sunk taper key in strained joint.
The slopes on the pink key and on the yellow disk slot are equal.
Possible case for the taper key (in orange): no slot on the shaft and bottom surface of the taper key is cylindrical.
